 Power Monitor PIN Photodiode
Applications:
- Monitor for Amplifier/Telecommunication System
- DWDM Channel Monitoring
- PON System Monitoring
Features:
- Epoxy-Free Optical Path
- High Return Loss
- Low Dark Current
- Exceptionally Stable and Reliable
- Dual Window Version Available
Description:

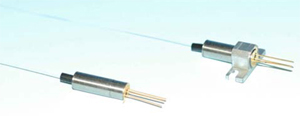

Go!Foton’s Power Monitor PIN Photodiode, assemblies are designed for optical network channel monitoring applications. The hermetically sealed InGaAs photo detector has a low dark current and a flat and rapid power response across a wide wavelength range. This product is available with mounting brackets (Flange) to ease board assembly.
Specifications:
| Absolute |
Parameter |
|
Specification |
|
| Maximum |
Reverse Voltage (V) |
|
20 |
|
| Rating |
Forward Current (mA) |
|
25 |
|
| |
Reverse Current (mA) |
|
5 |
|
| |
Operating Case Temperature (OC) |
|
-40 to +85 |
|
| |
Storage Temperature (OC) |
|
-40 to +85 |
|
| |
Lead Soldering Temperature (OC) |
250 (10sec, 2mm from case) |
| |
|
|
|
|
| Electro-Optical |
Parameter |
Min. |
Typ. |
Max. |
| Characteristics |
Operating Wavelength (nm) |
1525 |
|
1565 |
| (Reverse Bias VR = 5V) |
Responsivity (A/W) |
0.8 |
|
|
| |
Return Loss (dB) |
45 |
|
|
| |
Dark Current @25oC, Vr=5V (nA) |
|
|
5 |
| |
Capacitance (pF) |
|
|
12 |
| |
Bandwidth (MHz) |
|
300 |
|
| |
Polarization Dependent Responsivity (dB) |
|
|
0.1 |
| |
|
|
|
|
| Packaging |
Parameter |
|
Specification |
|
| |
Fiber Type |
SMF-28e or Equivalent |
| |
Fiber Length (mm) |
|
>1000 |
|
| |
Connector |
|
None |
|
| |
Package Size (mm) |
(φ)5.5 x (L)17.2 [22.2] |
| All specifications are measured without fiber connectors. |

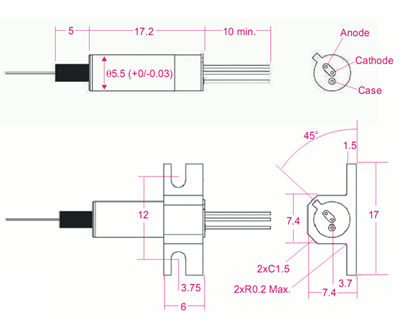

| Dimensions: |
 |
| * Dimensions are in mm unless otherwise noted |

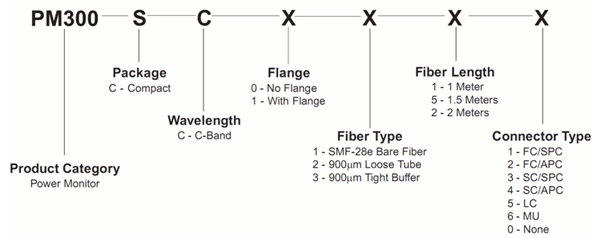

Ordering Information:
|
 |
Example:
PM300-S-C-0-1-1-0
Power Monitor PIN Photodiode Pigtail Assembly, C-Band Operating Wavelength, No Flange, SMF-28e Bare Fiber, 1 Meter in Length with No Conncetor. |
